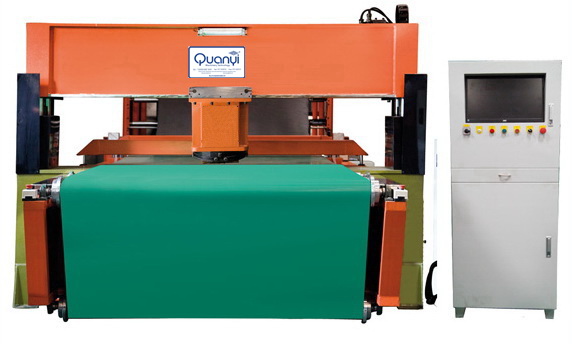

AUTOMATIC COMPUTER CONTROL FOUR-COLUMN PUSH PLATE FEEDING CUTTING MACHINE

BRAND:
NO.:   QY878

QTY:
- +
()+1
DETAILS Inquiry

PURPOSE

This Machine is applicable for the die cutting operation by the molding cutting die on various kinds of non-metallic materials, such as flaky materials, blister, expandable polyethylene packaging, rubber, printing and other industries.

FEATURES

1. T2.Computer typesetting system: Automatically moves for row die cutting, Set the Angle and location for each cutting of head, set the cutting speed and depth, Hardware connection whether normal, manual simulation machine running status.

2. The host machine adopts the four-column guiding, double crank balance and hydraulic drive to guarantee the cutting die speed and precision of the machine. All the sliding connection parts adopt the central oil supply automatic lubricating device, the wear to a minimum.

3. The input and output of material is conveyed on the conveying belt, and the die cutting operation of materials is also done automatically on the conveying belt.

4. Machine cutting area is equipped with safety light curtain on feeding and

SPECICATION

DIMENSION: 4100X2500X2250MM

COMPUTER CASE SIZE: 710X610X1820MM

CUTTING AREA: 1700X1600MM

HEAD SIZE: 400X400MM

CUTTING FORCE: 40T

STROKE: 25~165MM

POWER: 4HP/3KW

MOTOR: 2KW

N.W:  3650KG
