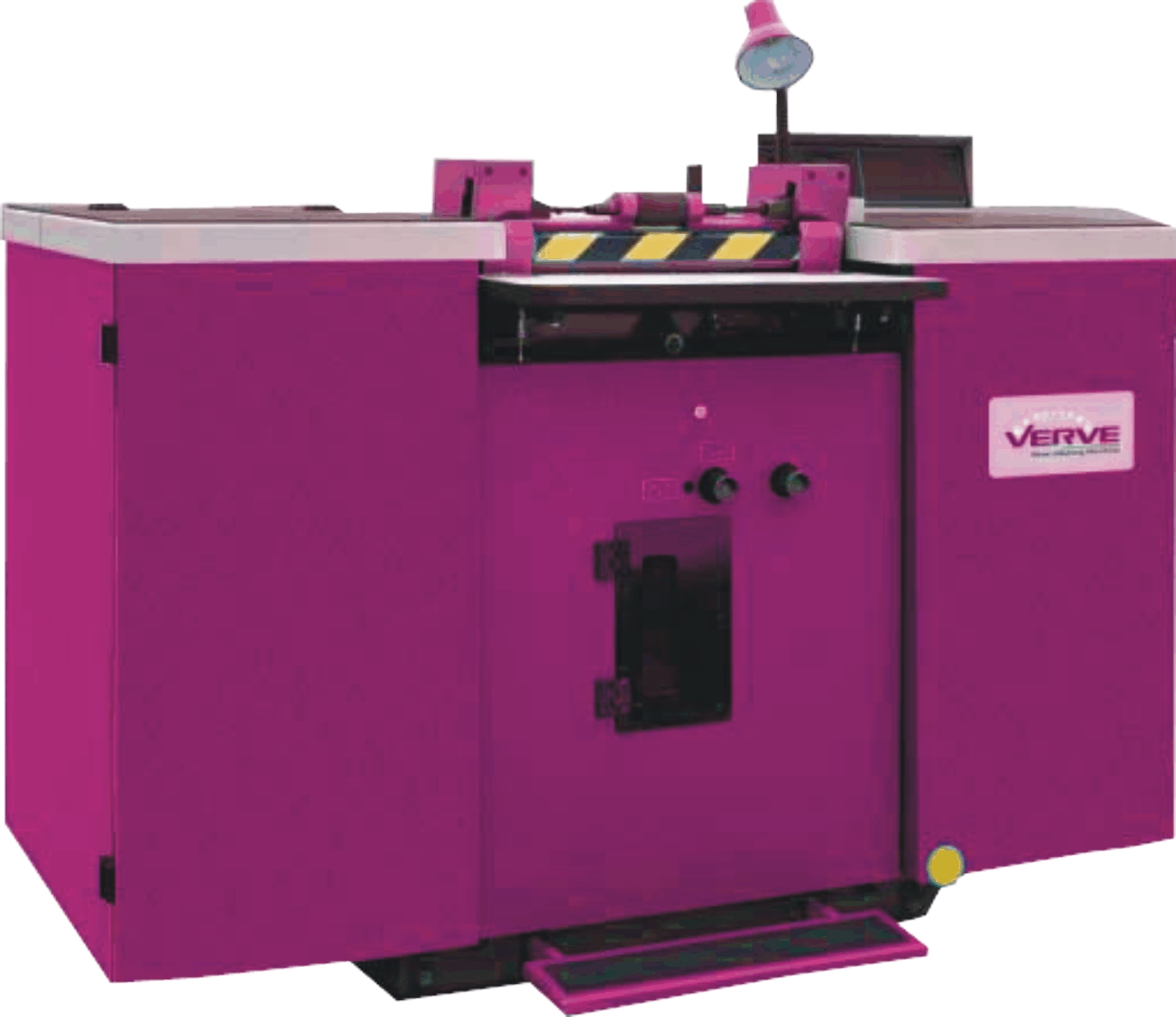

BAND-KNIFE SPLITTING MACHINE

BRAND:
NO.:   V7A

QTY:
- +
()+1
DETAILS Inquiry

PURPOSE

The machine is used for the leather products industry in 420 mm wide, thickness of 8 mm below the hard and soft leather piece of thin, piece of equipment of well until the required thickness.

FEATURES

1. digital display piece of cutting thickness, feed stepless variable speed.

2. automatic feed positioning device, do not need to adjust the props.

3. automatically adjust the knife pressure plate gap, the blade cutting precision is higher.

4. independent scurfy vacuuming and sharpen dust suction device.

5. leather involved in automatic stop system,electronic phase automatic detection system.

6. the single handle knife device and start the automatic control device.

7. massive flywheel knife operation is more stable and accurate.

8. Then 70 mm special knife durable, economical and practical, reduce operating costs.

9. reliable precise orbit making the flywheel, change the knife is more easy, fast and convenient.

10. cut different leather, piece of peel stress free adjustment.

SPECICATION

MAXIMUM CUTTING WIDTH:420 MM

THE MINIMUM SLICE THICKNESS: 0.15MM AND THE UPPER FEED ROLLER 0.5 MM

THE LARGEST THICKNESS: 8 MM

FEED SPEED:1-20M/MIN

BRING THE KNIFE SPECIFICATION :3570X50X0.8MM

THE MOTOR POWER: 3.5 KILOWATTS

THE SHAPE: 1600X960X1420MM

THE PACKAGE SIZE:1800X1230X1540MM

NET WEIGHT:720 KG
