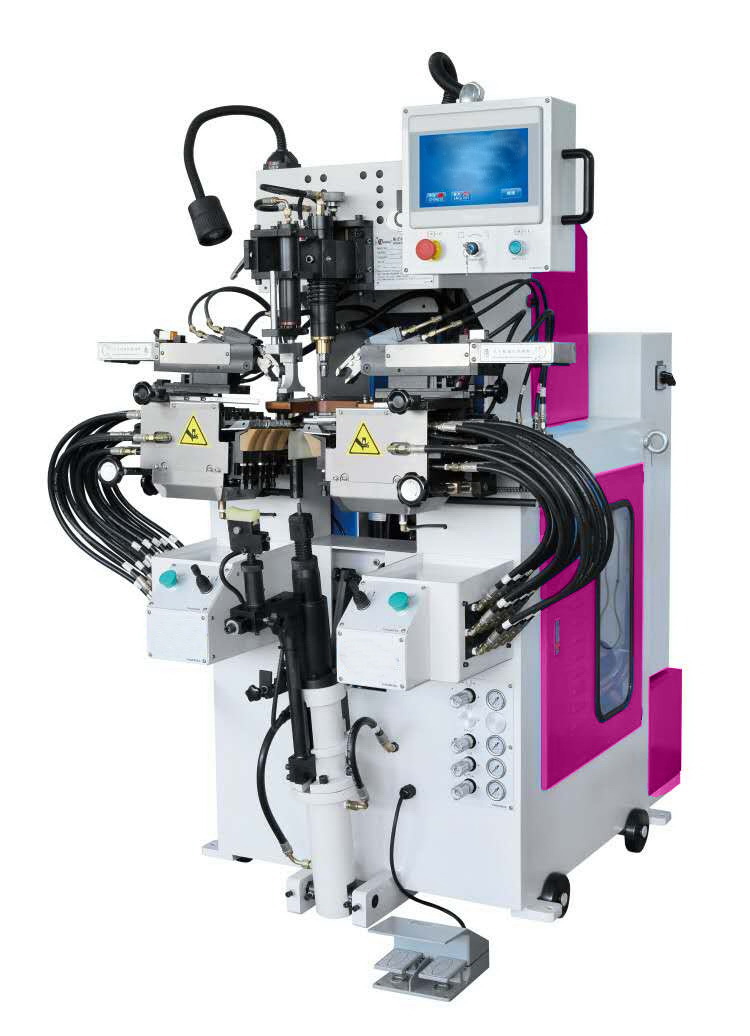

Computerize Hydraulic Side and Seat Lasting Machine(Hotmelt Tracer Optional )

BRAND:
NO.:   QY2B6

QTY:
- +
()+1
DETAILS Inquiry

PURPOSE

This machine can make the shoes forepart and rear parts of the lasting jobs once completed.

FEATURES

1. The PLC system is equipped with the touch screen to operate the machine with the graphical symbols.

2. The setting of the parameters(time and stroke)is by numerical key in, with the protection of the key switch to avoid the randomly changing by the non-authored personnel .

3. Error diagnostic readable on touch screen.

4. The heel band is transmitted by the chain mechanism.

5. The side lasting device is equipped with four fingers lasting structure,with the designed function for the overlapped lasting heel lasting device.

6. The finger lasting mechanism is designed with the adjustable left and right balance. also the two-step operation pressure.

7. Two pincers are provided to achieve a special counter pull in side and heel area..

8. Vertex cylinder using two sensors,the machine operation safer.

9. The machine can save labor 4-6.

SPECICATION

CAPACITY: 1300-1600PAIS/8HR

DIMENSION: 1700*1300*1750MM

POWER SUPPLY: 380V/50HZ

POWER CONSUMPTION: 2.2KW

AIR SUPPLY: 5MPA

NET WEIGHT: 1045KG
