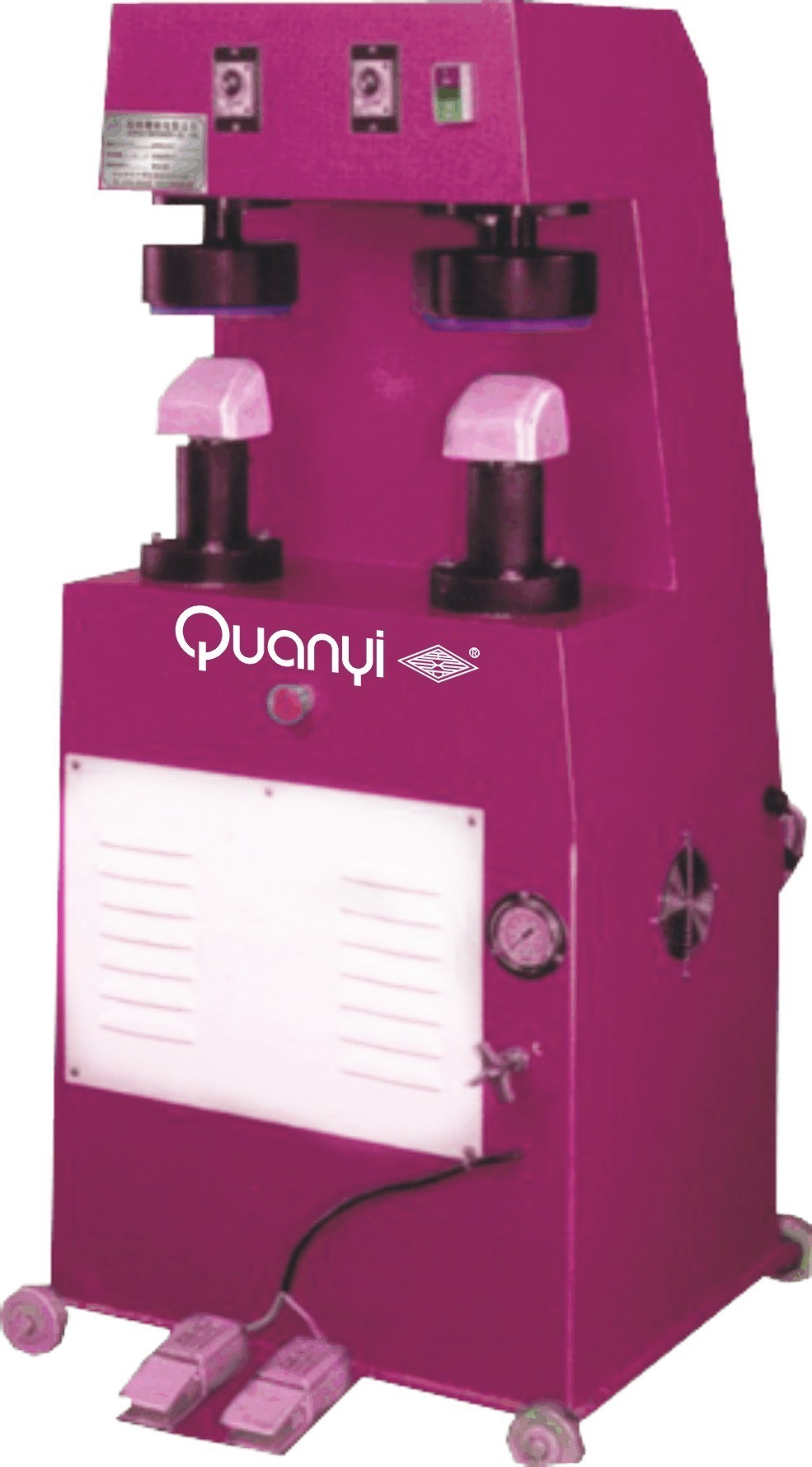

Fist Insock/Outsole Pressing Machine

BRAND:
NO.:   QY765D

QTY:
- +
()+1
DETAILS Inquiry

PURPOSE

This press is designed for all-oil pressure system, which is suitable for the bottom of the dragon boat, the bottom of the shoe and the outer bottom of the casual shoe

FEATURES

The rising oil pressure cylinder USES pre-filling valve to replenish the oil, which can accelerate the operation and save operating time

The pressure lever mechanism adopts the hydraulic automatic balancing system, the pressure lever is not adjusted, the operation is simple.

It is also very convenient to make shoes easy, long or semi-long.

When the mechanism is backward, special circuit design is used to control the size of the shoe.

Each action of the bottom machine has external handle pressure function to make the bottom of the shoe more perfect.

Automatic balance the deflection of compressive bar and institutions: two compressive bar height adjustment adopts hydraulic automatic balancing structure, are free to adjust the height of last change, and to ensure that an average of two compressive bar pressure, make the sole, the pressure of the power more evenly. The two levers can do the offset simultaneously. In order to remove the last one from the last, the problem of inconveniences is to change the base of the old machine.

Pressure mechanism: last action on both sides of the adopts full hydraulic pressure type, each side has nine rubber foam block, may at any time the size of different type of shoes do solid wall pressure, and each briquetting are driven by the hydraulic cylinder of independent, each pressure can reach 250-300 kg, have two groups and each unit before and after blocking tip for choice and don't have to, make the edge of the glued to reach the most FuJia effect

SPECICATION

DIMENSION: 820*740* 1480MM

WIGHT: 300 KG

POWER: 2HP
