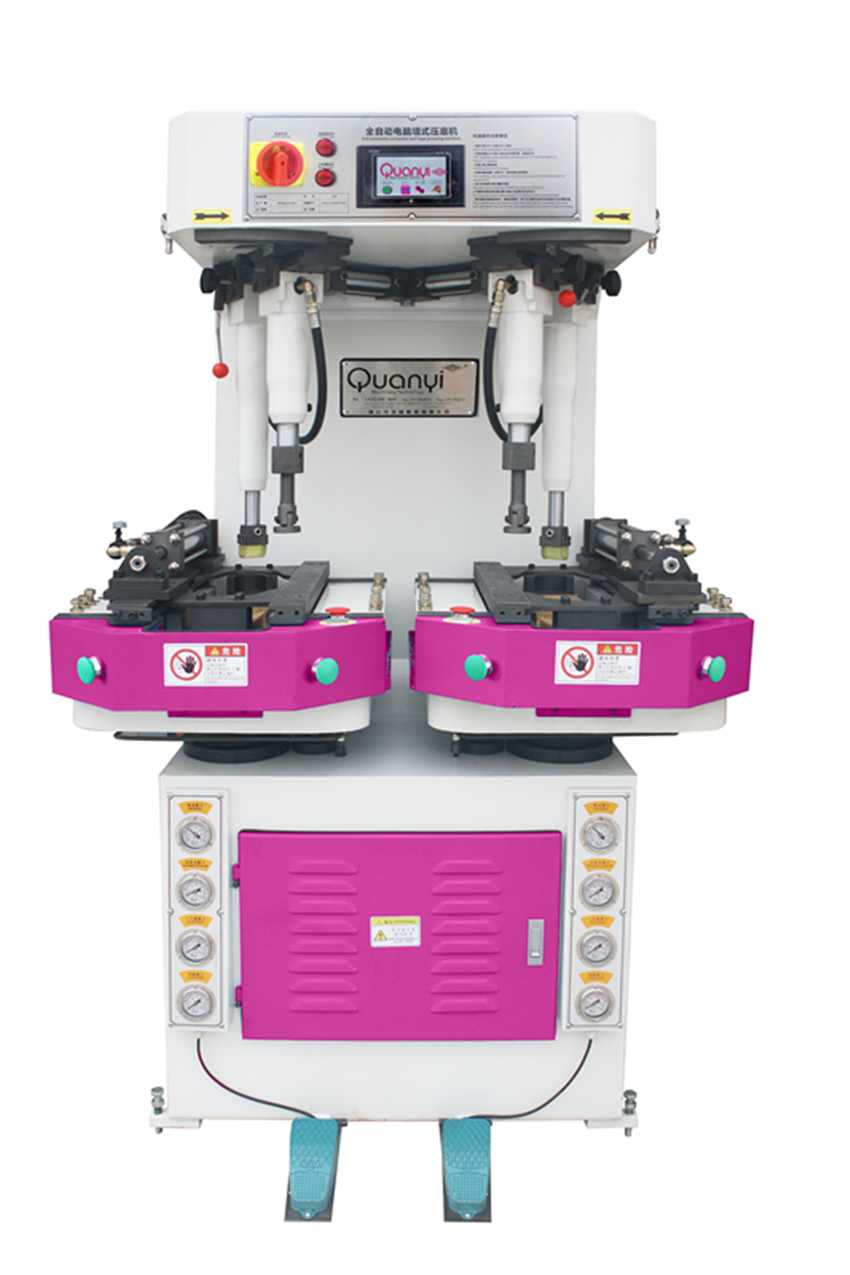

FOR HYDRAULIC SOLE ATTACHING MACHINE(FLOATING BOTTOM)

BRAND:
NO.:   V16

QTY:
- +
()+1
DETAILS Inquiry

PURPOSE

The machine applies to the big sole attaching of dragon boat-sole and wall-encircled sport footwear,which is the full side automatic pressing sole machinery in the shoe-making industry.

FEATURES

1. The action is four in one, and have the second pressure

2. Press the bottom and the back and back, the bottom oil cylinder is floating, the action can be finished separately

3. Suitable for shoe size 0-18 shoes, high heels

4. PLC interface, adjustable shoe type is more convenient, pressure is firm

SPECICATION

WORK VOLTAGE: 380V 150HZ

MACHINE SIZE: 1520×850×1850MM

WORK PRESSURE (OIL): 20~70PA.S

POWER: 3HP×4P

OUTPUT PER: 2500PAIRS/8HRS

HYDRAULIC OIL MODEL: 68#或46#

N.W: 1800KG
